COMPRESSION MOUNTING

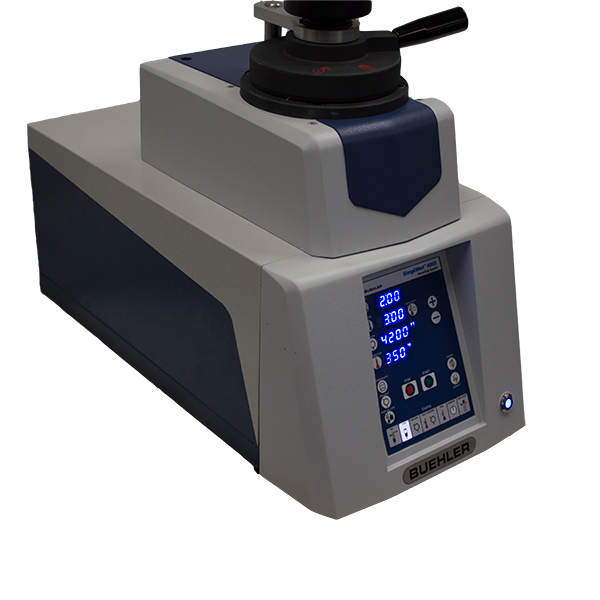

SimpliMet 4000 Mounting Press Specifications
Operation	Automatic Electrohydrolics
Mounting Mold Sizes	English: 1", 1.25", 1.5" Metric: 25mm, 30mm, 40mm, 50mm
Mounting Parameters
Pressure	1000 - 4400psi(70 - 300bars) operational pressure range +/- 10% Adjustable in 50psi (5bar) increments Preload pressure function applies gradual presssure for delicate specimens 350psi (24bar)
Heat Time	User Selectable time from 1-20 minutes
Heating Tempurature	120° F - 420° F (50° C - 220° C) operation tempurature range
Heating Power	1500 Watt@115VAC / 1900 Watt@230VAC
Cooling Time	User Selectable or Smart Cool User Selectable time from 1-30 minutes Adjustable in 10 second increments Smart Cool Intelligent cooling system automatically cools until sample temperature reaches 40°C
Thermoplasmic Function	Automatically sets correct parameters fro thermoplastic resins such as TransOptic TM and cools the mount in a contolled, linear fashion appropriate for the mounting media
Noise Level Max	62 dB maximum at 1 meter from the front of the machine, while raising and lowering the ram with the mold closure open
Working Environment	Tempurature: 40° F to 104° F / 5° C to 40° C Humidity: 30 - 90% humidity, non-condensing
Electrical
Voltage/Frequency	85-264VAC, 50/60Hz 1 phase
Water inlet	1/4" OD tubing or 3/8" OD tubing
Water Outlet	Drain: 1/4" ID x 1/3" OD hose Vent: 1/4" ID x 1/2" OD hose
Length	26.00" 660mm
Length from rear of machine to front feet	21.25" 540mm
Width	12.25" 311mm
Height Closed	19.62" 498mm
Height Open	20.62" 524mm
Weight	120lbs 54kg
Compliance	CE, PSE, RoHS, WEEE

Benefits

High reliability in 24/7 use envirionments

The SimpliMet 4000, was tested in extreme conditions, and simulated the duty cycle of the busiestlabs in the world, providing high reliability in continuous use environments.

Optimize Productivity in Your Space

The SimpliMet 4000 packs fast mounting cycles into limited bench space, optimizing productivity. By replacing older, slower, larger presses; capacity can be doubled for the same amount of space.
Fast duplex mounting allows two mounts to be made during the same cycle with negligible increase in cycle time.

Ease of use saves time and protects sample quality

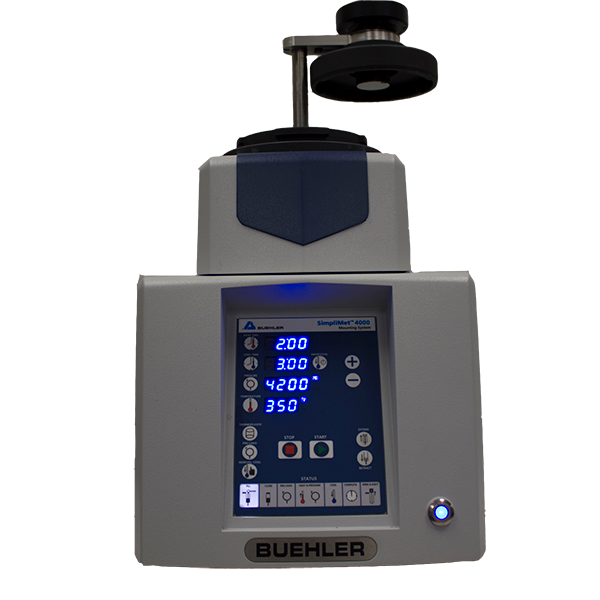

Simple user interface eliminates errors and protects the quality of your sample prep. Everything you need is right on the front panel.
Use your press out of the box without the wait. New employees can be trained quickly and efficiently.

Comfortable to use

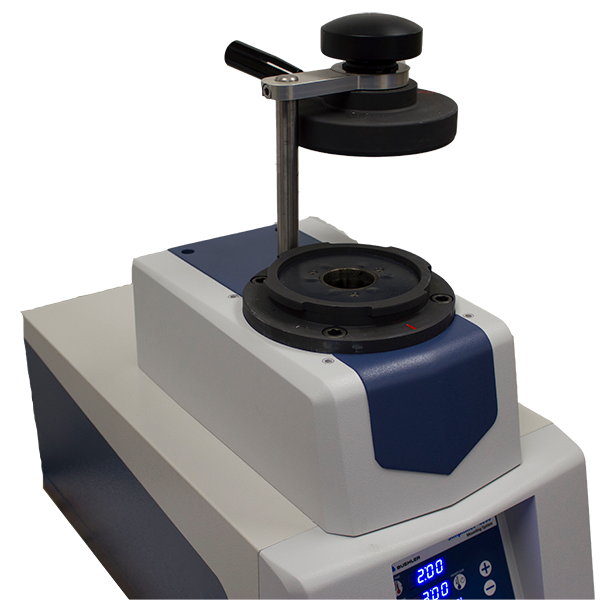

The single handed closure mechanism engages quickly, moving you right into your next task.

Videos

SimpliMet 4000 Mounting Press Demo

This video demonstrates how to use the SimpliMet 4000 mounting press to mount a steel sample in a 1.25-inch mount using EpoMet.

SimpliMet 4000 Duplex Function

This video provides an overview of the duplex function on the SimpliMet 4000 mounting press. It shows how to load two samples into the mounting chamber and calculate how much mounting media is needed by using the Mounting Media Calculator.
