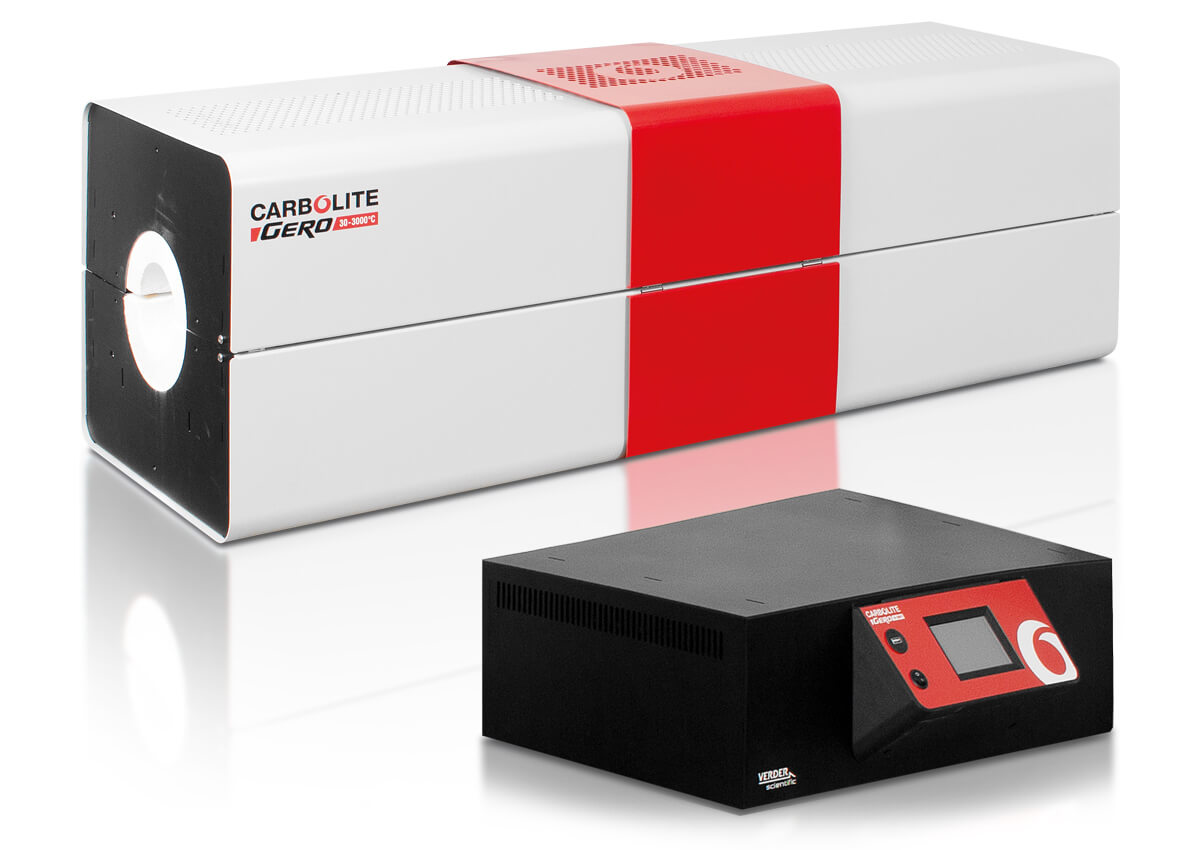

TF TUBE FURNACE RANGE

Carbolite Gero's new tube furnace range is at the pinnacle of furnace design. The culmination of over 80 years of experience in thermal engineering; combining the latest technological developments with solid construction, high-quality components and a sleek, modern aesthetic.

HIGH QUALITY HEATING ELEMENTS

Excellent temperature uniformity
Fast heat-up and cool-down rates
Unsurpassed temperature uniformity along the entire heated length

HIGH QUALITY THERMAL INSULATION

Low energy consumption
Low external case temperature
Designed for longevity

TEMPERATURE CONTROL & COMMUNICATIONS

TF tube furnaces are equipped with ethernet communications and a programmable controller with 24 segments as standard:

Single zone furnaces fitted with Carbolite Gero EPC3016P1 controller
Three zone furnaces fitted with Carbolite Gero CC-T1 touch-screen controller
Over-temperature protection (recommended to protect valuable contents and for unattended operation); 1600°C models areequipped with this option as standard
A range of sophisticated digital controllers, multi-segment programmers and data loggers with digital communication options is available.

Options

Over-temperature protection (recommended to protect valuable contents and for unattended operation); 1600°C models areequipped with this option as standard
A range of sophisticated digital controllers, multi-segment programmers and data loggers with digital communication options is available.

MODIFIED ATMOSPHERE & VACUUM EQUIPMENT

Carbolite Gero tube furnaces may be equipped with a range of options to accommodate modified atmosphere and/or vacuum applications.

A range of additional work tubes, end seals and complete work tube packages
Vacuum packages with a choice of rotary vane pumps or turbomolecular pumps
Over-temperature protection (recommended to protect valuable contents and for unattended operation); 1600°C models areequipped with this option as standard
Inert gas package modules allow for the use of up to 3 non-reactive gases (available with either manual or automatic control)

MOUNTING CONFIGURATIONS

This range of tube furnaces is supplied in one of two standard mounting configurations.

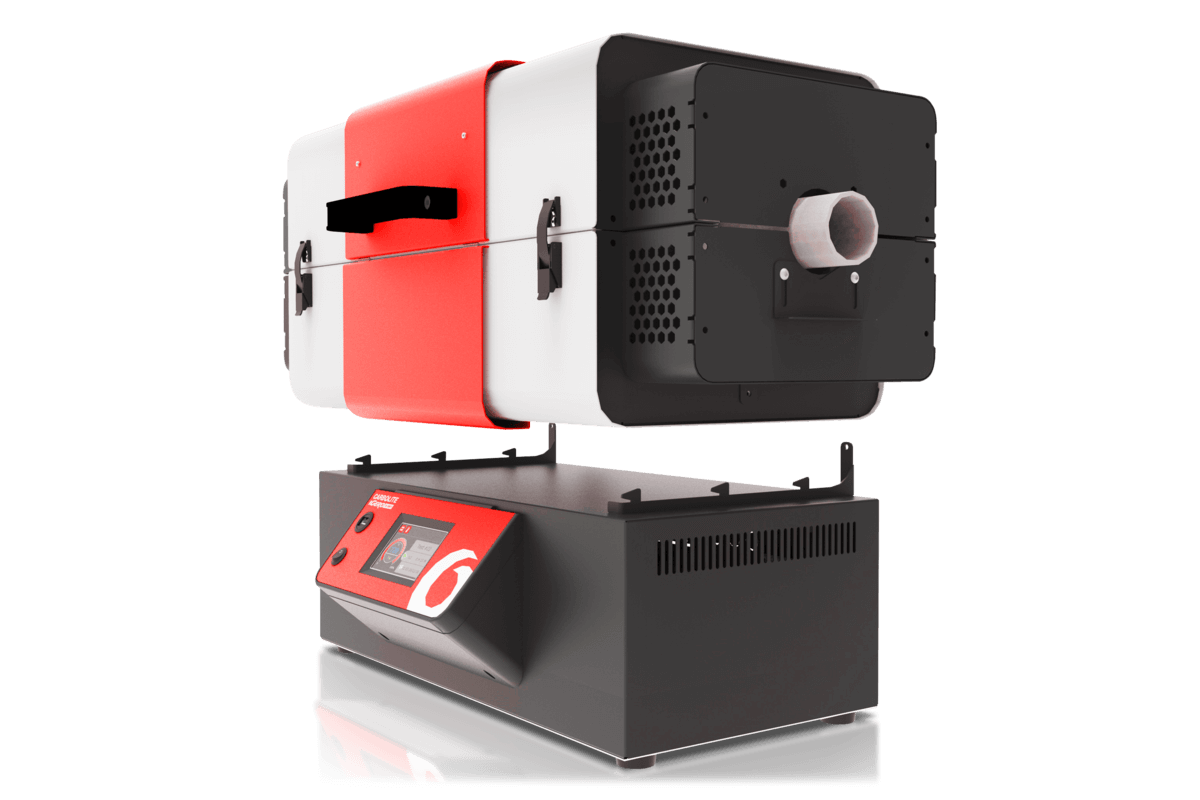

For heated lengths up to 600 mm the furnace body is mounted on top of the control box. The furnace body can easily be detached and separated for remote operation.

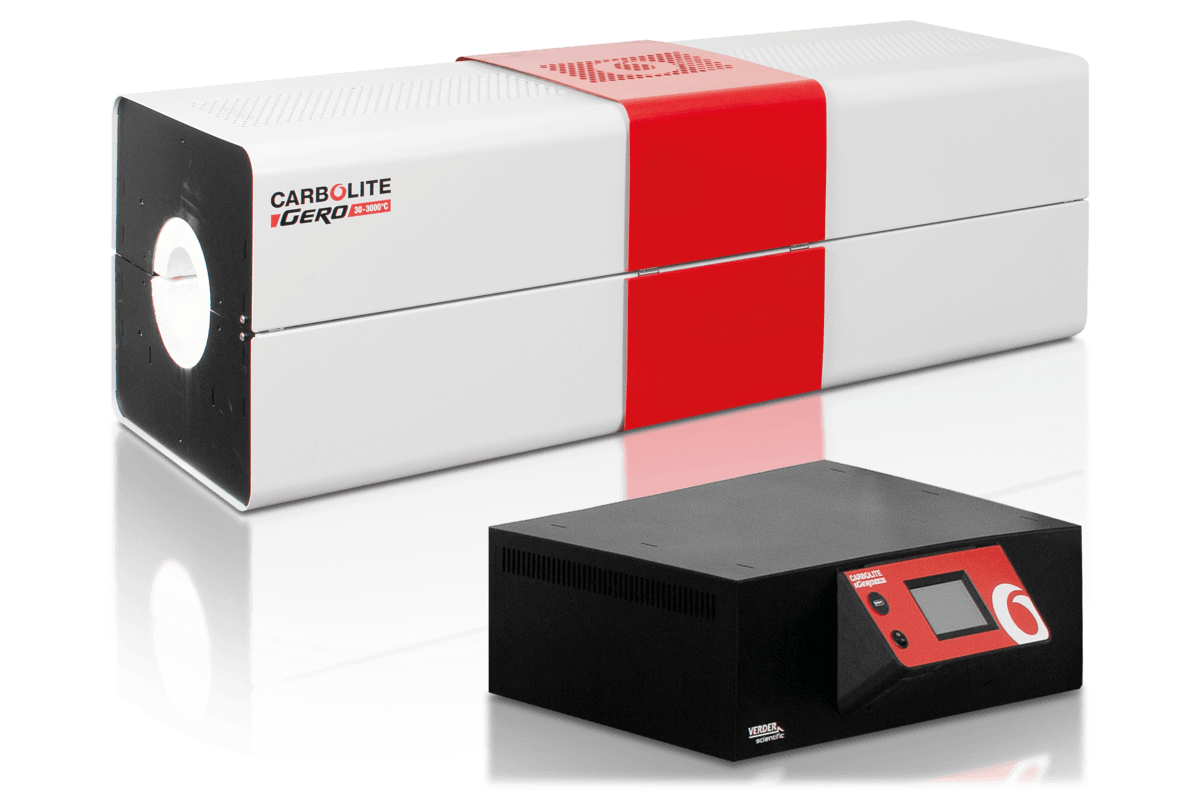

For heated lengths of 800 mm and above the furnace body and control box are always separate.

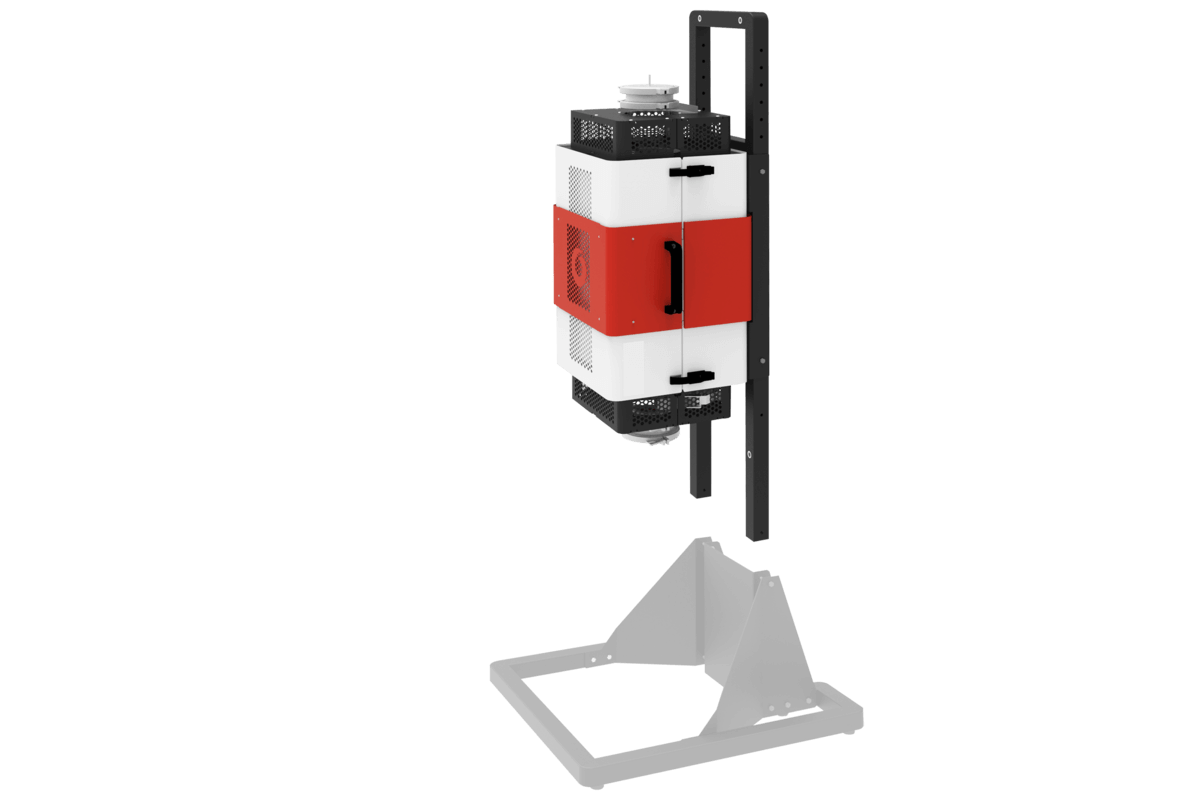

Both configurations include a 2 metre cable (incl. plug and socket) between the furnace body and control box. This flexible arrangement allows for easy conversion to optional mounting arrangements e.g. attaching to a vertical stand, a mounting bracket or inside a fume cupboard.
