ELIO-Non-contact micro-XRF Scanning Spectrometer
ELIO-Non-contact micro-XRF Scanning Spectrometer

ELIO-Non-contact micro-XRF Scanning Spectrometer

Product Description

Bruker ELIO is the world’s only truly portable micro-XRF scanner with mapping capabilities—engineered for on-site, non-contact elemental analysis. Weighing just 2.1 kg, ELIO brings lab-grade precision into museums, heritage sites, and field locations. No sample prep, no risk—just rapid, reliable insight into materials, layers, and trace elements with zero damage to the object. It’s a smart blend of portability, power, and precision in one travel-ready system.

Enquiry

ELIO-Non-contact micro-XRF Scanning Spectrometer

Applications

  • Art Authentication & Restoration

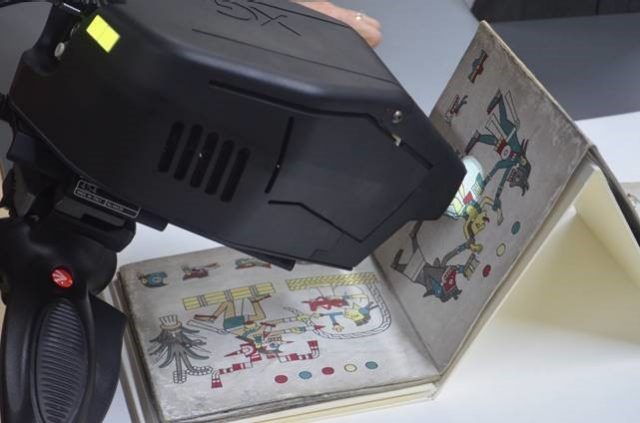

    Uncover hidden pigments, retouches, and underdrawings in priceless artworks—right at the gallery or studio. ELIO ensures zero contact, zero risk.
  • Archaeological Research & Field Studies
    Analyze ancient ceramics, metal tools, and wall paintings on-site. ELIO eliminates the need for risky transport of fragile or immovable artifacts.
  • Museum & Heritage Conservation
    Assess historical objects and sculptures without moving them from display. Ideal for conservation labs, archives, and national heritage surveys.
  • Material Composition Analysis
    Identify elemental makeup of composite objects, corrosion layers, and manufacturing clues—from metals and minerals to ceramics and glass.
  • Cultural Forensics
    Support provenance investigations with precise elemental data to distinguish authentic vs. replica objects or track geographical origins.
  • Non-Destructive Quality Control
    Perfect for antique dealers, collectors, or institutions needing surface-layer analysis without any damage or prep.

Technical Details

  • Excitation: Microfocus Rh X-ray tube (10–50 kV); custom target options (Au/Ag)
  • Detection: 17 mm² SDD with <140 eV resolution (optional 50 mm² for larger area detection)
  • Element Range: Na (Z=11) to U (Z=92); He purge enables light element detection

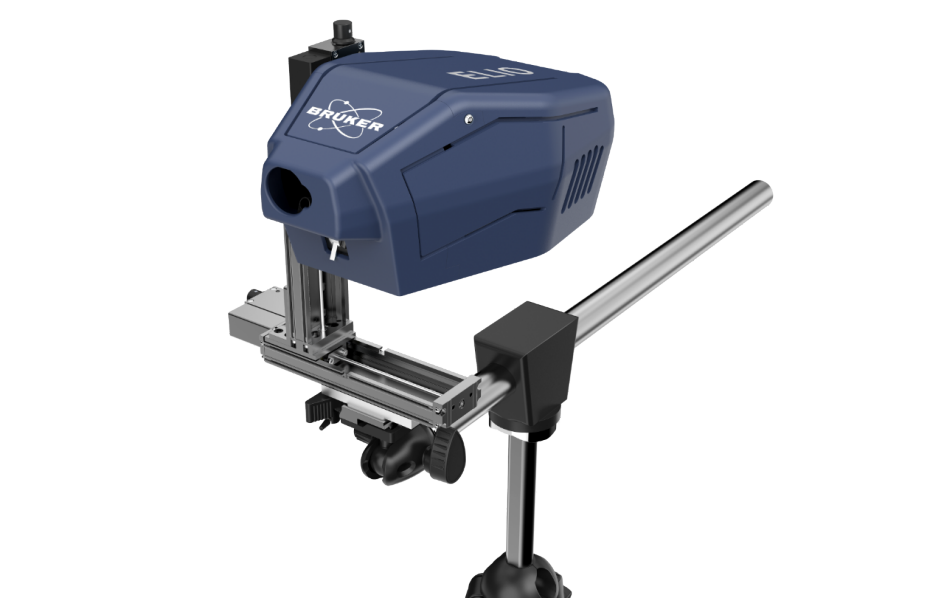

  • Mapping Area: Up to 100 x 100 mm²; tripod-mounted motorized XY stage
  • Spot Size: 1 mm collimator for fine-detail scanning
  • Weight: 2.1 kg head; ultra-portable with tripod and precision stage
  • Software: ELIO suite with auto peak ID, optical overlay, real-time spectrum view, and offline analysis with ESPRIT Reveal

The Bruker ELIO is the only truly portable micro-XRF scanner that brings laboratory-grade elemental analysis into the field, gallery, or conservation studio.
Weighing just 2.1 kg, this ultra-light, non-contact spectrometer is purpose-built for delicate, high-value objects — making it an indispensable tool for art restorers, archaeologists, and museum professionals alike.
With no sample prep, no damage, and no need to move the object, ELIO empowers you to analyze where the artifact lives.

Equipped with laser-guided targeting, an integrated microscope camera, and a 100 × 100 mm² mapping area, ELIO reveals elemental distributions with pinpoint clarity.
Its high-resolution spectrum and optional helium purge unlock detection from sodium (Na) to uranium (U), even in layered or weathered samples.
Whether you're investigating the pigments of a 17th-century painting or the patina on an ancient coin, ELIO delivers confidence, clarity, and complete portability.
