Crime-lite® ML2 Forensic Laboratory Light Source

BENCH TOP MAGNIFIER WITH MULTI-WAVELENGTH ILLUMINATION INFRARED ILLUMINATION MODULE NOW AVAILABLE

The new Crime-lite ML2 forensic light source combines the versatility of multi-wavelength, high intensity LED illumination with wide area bi-ocular magnification. An ideal system for the examination and 'marking up' of large items of evidence in the laboratory.

The Crime-lite ML2 features 8 high intensity white LEDs for general search and a choice of up to 4 additional narrowband LEDs including: UV, Violet, Blue, Blue/Green, Green, Orange & Infrared - wavelengths that are effective in detecting body fluids, semen, bone and tooth fragments, fibres, drugs, explosives, accelerants and chemically treated evidence.

Optional accessories for the Crime-lite ML2 system include an IR sensitive camera and tablet PC with image capture software for the visualization and recording of evidence undergoing infrared examination.

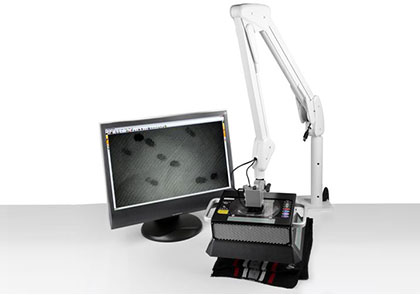

Crimr-lite ML2 with Cam

Crime-lite ML2 Applications

White light applications:

Blood spatter | Bruising and bite marks | Shoeprints | General search

UV light applications:

Bruising and bite marks | Body fluids | Fibres | Drug residues | Fingerprint treatments including Ardrox and Nanoparticles

Violet light applications:

Blue light applications:

Blue/Green light applications:

Bone & tooth | Fibres | Gunshot residues | Accelerants | Fingerprint treatments including Redwop, Greenwop, DFO, and Rhodamine 6G

Green light applications:

Bone & tooth | Fibres | Accelerants | Fingerprint treatments including Nanoparticles, DFO and Ninhydrin

Orange and Red light applications:

Fibers | General contrast search | Fingerprint treatments including DFO

Infrared light applications:

Blood spatter | Fibres | Gunshot Residues | Inks

Crime-lite ML2 Specifications

Features & Specifications

8 x high-efficiency White LEDs
Your choice of additional narrowband LED modules
large 3.5 dioptre magnifying lens
Optimised for the laboratory examination of large items
Heavy duty bench or wall mounted arm
Three-axis adjustable head mount
Air filter to maintain a clean environment
100-240V AC power input
Power saving mode
Optional Vis/IR Camera Module

Available Wavelengths

White LED's fitted as standard plus your choice of narrowband LED modules.
For information on available configurations please download the product brochure or contact our sale team

White 400-700nm	UV 350-380nm	Violet 400-430nm
Blue 420-470nm	Blue/Green 450-510nm	Green 480-560nm
Orange 570-610nm	Red 610-660nm	Infrared 800-900nm

Crime-lite ML2 Accessories

Bandpass Viewing Filters

In addition to the standard filters supplied with the Crime-lite ML2, a selection of Bandpass Viewing Filters, tailored for the examination of specific evidence types, are also available.

415nm for the visualization of blood spatter
530nm for the visualization of body fluids
550nm for the visualization of body fluids

Each Bandpass Viewing Filter is manufactured from Schott glass with an additional coating to suppress auto-fluorescent emissions from the Schott glass itself, thus ensuring maximum optical performance when using high power light sources.

Crime-lite ML2 Infrared Accessories

Evidence undergoing infrared examination using the Crime-lite ML2 IR module is visualized using an IR sensitive camera attachment with live video images being displayed on a PC monitor.

5MP IR sensitive camera

For the visualization and digital image capture of evidence

Attaches to the Crime-lite ML2
Rotates into position over the viewing lens
Hi-speed USB 2.0 interface
Includes UV, Vis & IR filters
Includes image capture software

Tablet PC Mount

Adjustable mount that clamps tablet PC to Articulated Arm

Laboratory Cart

Available for use with all Foster + Freeman Crime-lites, this robust wheeled cart is ideal for use in forensic laboratories.

The 70x60x70cm unit is mounted on lockable castors and can be manoeuvred around exhibits. A two-point fixing plate allows for the easy attachment of a Crime-lite articulated arm.

An optional uninterruptible power supply can be used to power equipment with no trailing wires. When not in use the trolley can be connected to an AC mains power outlet to be recharged.

Features Include:
