Combined RAMAN-LIBS analyzer for forensics

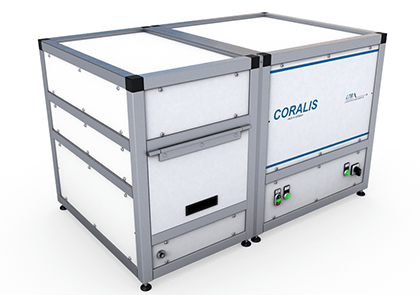

CORALIS system-Unique two-wing echelle spectrometer

The CORALIS system unites the two high complementary techniques LIBS and RAMAN. By means of a high-quality sample image, pre-selected measurement positions are analysed either with Raman or LIBS or with both methods sequentially.
The unique two-wing echelle spectrometer as core part is able to provide high resolution, large range and high light-throughput on an unbeatable level. The laser-safe housing and the integrated interlocking circuit ensure user-friendly handling of the device and
protection of the installed components.

Enquiry

Setup

CORALIS (COmbined RAman LIbs System) provides unique advantages for applications in the fields of technical cleanliness, particle analysis, forensics and others due to the exceptional combination of imaging, molecular and elemental analysis.

By using an automated CMOS-based 6 Mpixel camera and a choice of two microscopic objectives, the CORALIS delivers a highly resolved overview or detailed close-up image. An integrated imaging analysis algorithm supports automatic particle recognition as well as the analysis of particle size, size distribution and particle counting. The imaging mode is also used to define the regions of interest for the following molecular and elemental analysis.

The further analysis of the sample or particle can be done with RAMAN or LIBS or both techniques sequentially. CORALIS contains two different RAMAN lasers @ 532nm and 785nm. The molecular information carried by the RAMAN signal is collected by a high efficient mirror optic and guided via free-beam optics to the Aryelle spectrometer. Further improvements of the high-resolution RAMAN signal can be done by the background correction integrated in the user-friendly FusionRL software package. Analysis of RAMAN spectra can either be done in the FusionRL itself or by simple export to the well-known and established KnowItAll® spectroscopy software from BIO-RAD.

Complementary to the molecular analysis done by RAMAN, the CORALIS provides a detailed elemental analysis realized by high-resolution LIBS. The second optical path is optimized for the short-pulse plasma analysis. The excellent spectral resolution together with the broad wavelength range down to the deep UV range allows to get detailed fingerprint sufficient for classification as well as quantification.

Measuring technique Laser-induced breakdown spectroscopy (LIBS) qualitative and quantitative multi-elemental analysis
RAMAN spectroscopy analysis of molecule structures by the detection and
interpretation of scattered light
Imaging Particle counting, size distribution,…
LIBS Laser 1064nm (up to 50 mJ pulse energy)
Wavelength range 190 nm – 520 nm
Resolution 13 pm – 35 pm
RAMAN Laser 532 nm and 785 nm ( up to 50 mW)
Wavelength range 530nm – 950 nm (up to 6000 cm-1)
Resolution 532nm: 2.5 – 2.0 cm-1
785nm: 1.7 – 1.4 cm-1
XYZ-stage Travel range X = 50 mm , Y = 50 mm, Z = 35 mm
Resolution 1 µm
Repeatability 1 µm
Sample Imaging CMOS camera-based 6 Mpixel
Overview image Image field (28 x 19)mm
Detail image Image field (3.5 x 2.5)mm
General Dimensions 1200 mm x 750 mm x 750 mm
Weight 225 kg
Safety Laser class 1
Software Fusion RL
Measuring methods single or average spectra recording
Sample mapping and depth scans
Particle and particle size identification
Analysis Univariate and multivariate analysis
Material identification analysis
Database with reference spectra for sample identification
Compatibility with Bio-Rad KnowItAll®
Accessories Standard samples Certified standard samples for size calibration
Certified reference samples for LIBS and Raman

Applications

  • Particle analysis and classification
  • Technical Cleanliness
  • Gemology
  • Forensics (car paint coatings, depth scan multi-layer, …..)
  • Mineralogy
  • Environmental
