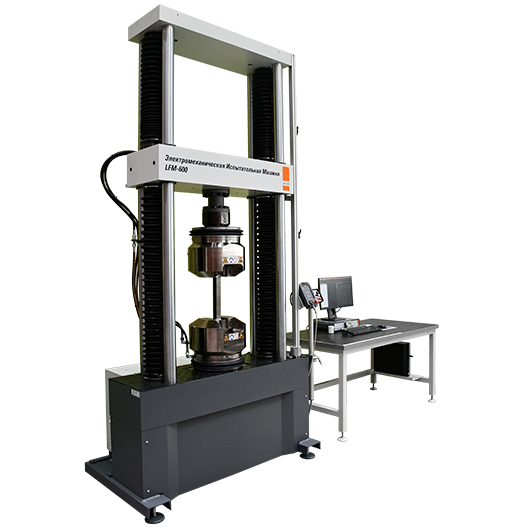

LFM Electromechanical Floor Standing Machines 600 to 2500 kN
LFM Electromechanical Floor Standing Machines 600 to 2500 kN

LFM Electromechanical Floor Standing Machines 600 to 2500 kN

Precision Power for Structural Testing Across Industries

The LFM® Series offers rugged, floor-standing electromechanical testing machines built to handle high-capacity force testing with accuracy and confidence. Designed with a robust 6-column frame and equipped with high-performance ball screw drives, these systems are the perfect match for demanding mechanical tests on metals, fasteners, bolts, structural steel, and advanced composite materials.

With models ranging from 600 to 2500 kN, the LFM® machines are widely used in sectors such as civil engineering, aerospace, automotive, marine, and rail, where both strength and repeatability are essential. Whether you're testing full components, substructures, or industrial samples, these machines deliver exceptional stability, smooth operation, and long-term reliability.

Perfect For Testing:

  • Metals and steel plates
  • Bolts, fasteners, and fixings
  • Composite panels and reinforcements
  • Aerospace-grade materials and assemblies
  • Structural elements in civil or marine construction
  • Rails, automotive chassis, or large welded components
Enquiry

LFM Electromechanical Floor Standing Machines 600 to 2500 kN

LFM® Series
Choose from 11 versatile models to match your capacity and application:

  • Electromechanical Universal Testing Machine LFM-600 kN with Non-Shift Grips
  • Electromechanical Universal Testing Machine LFM-600 kN with Parallel Grips
  • Electromechanical Universal Testing Machine LFM-1000 kN
  • Electromechanical Universal Testing Machine 1200 kN
  • Electromechanical Universal Testing Machine LFM-1600 kN
  • Bespoken Electromechanical Universal Testing Machine LFM-2000 kN
  • 2500 kN Hybrid Testing Machine
  • 1200 kN Electromechanical Universal Testing Machine with Two Side Test-Areas
  • Side Test Area System
  • Dual Test Space Electromechanical Universal Testing Machine
  • Electromechanical Universal Testing Machine with Environmental Chamber

LFM® Series

  • High-Rigidity 6-Column Design: Engineered for excellent axial and lateral stiffness, ensuring accurate results even under extreme loads.
  • Smooth Failure Behavior: The heavy-duty frame and machine mass help absorb shock at break, enabling controlled, consistent fracture tests.
  • Precision Ball Screw Drive: Dual high-resolution ball screws with pre-stressed, low-backlash mechanics ensure high test resolution and repeatability.
  • Brushless AC Servomotor: Quiet, low-maintenance drive provides stable movement and high-speed testing right up to nominal force levels.
  • Operator-Centric Safety & Comfort: Features like adjustable end stops, sealed bellows, emergency stop, and ergonomic height ensure safety and ease of use.
  • Built for Long-Term Performance: Greased-for-life components, sealed spindle systems, and high-quality parts reduce maintenance and increase uptime.
  • Adaptable Configurations: Options available for dual test areas, side test setups, parallel or non-shift grips, and environmental chambers.

Contact Us at +9714 2152799

We can help you with a solution tailor to your specific need.
